Description

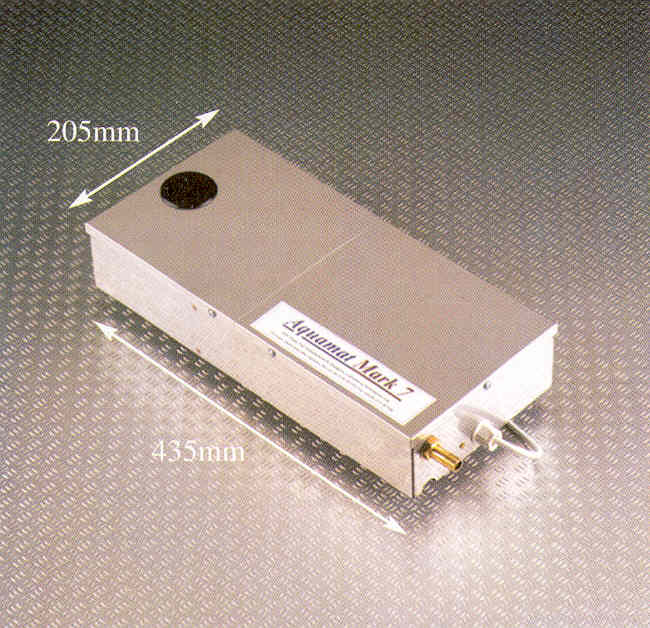

This 230V AC unit, the Aquamat Mark 7 Pump Tray, is our most compact unit with a footprint of only 435mm x 205mm it will fit under most retail cabinets where space is at a premium and is intended to cope with the condensate produced from a single display cabinet.

Specification

• Part No. AM107 (Part No. AM107A for High Level Alarm option.)
• Size  435mm x 205mm x 85mm
• Water Tank Capacity: 2.5 Litres
• Pump Capacity: 250 Litres per hour at 12m total head of water
• Max Total Head: 12 metres
• Pump Control: Float switch controlling a power relay.
• Inlet Connections: 1 @ 1″ (end) & 1 @ 2″ (lid)
• Outlet Connections: 12mm for flexible hose.
• Non-return valve: Fitted within unit
• Electrical Supply: 230V AC, fused 5 Amp
